Chamfer router bits

SERIES:  8/957

Tungsten carbide tipped Two cutting edges Right-hand rotation Anti-kickback design Tool with bearing
A D I L S Order No. Buy now Availability
11.25° 7/8" 7/8" 2-13/16" 1/2" 857.504.11 Buy now Available
15° 1" 7/8" 2-13/16" 1/2" 857.503.11 Buy now Available
22.5° 1-1/4" 7/8" 2-13/16" 1/2" 857.502.11 Buy now Available
30° 1-1/2" 7/8" 2-13/16" 1/2" 857.501.11 Buy now Available
CMT chamfer bits can cut clean, accurate bevels and chamfers and are great for edge work or for making perfectly aligned multi-sided containers, boxes and other decorative projects. See illustration below for examples. Can be used for working larger scale projects such as beams and columns with excellent results.
 Item  Bearing  Screw  Shield for bearing  Hex key
857.504.11   791.003.00
  990.058.00
  990.423.00
  991.057.00
857.503.11   791.003.00
  990.058.00
  990.423.00
  991.057.00
857.502.11   791.003.00
  990.058.00
  990.423.00
  991.057.00
857.501.11   791.003.00
  990.058.00
  990.423.00
  991.057.00

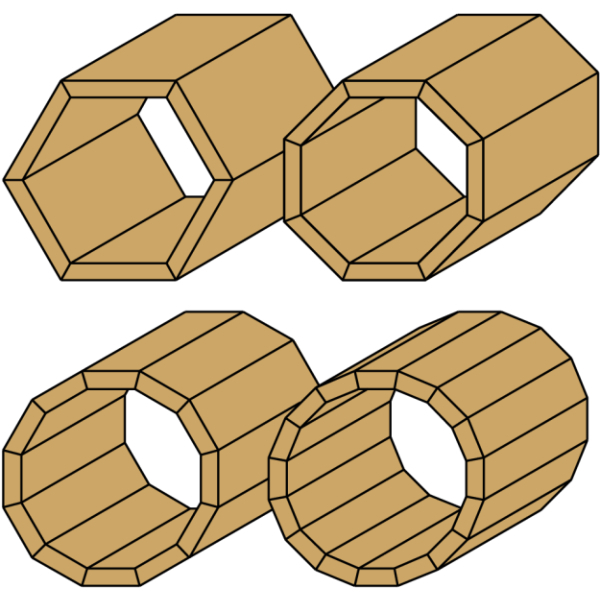

Application example.- product picturezoom Application example.
