Tenon cutting router bits

SERIES:  8/900.627

Tungsten carbide tipped Two cutting edges Right-hand rotation Anti-kickback design For use on router tables only
Tenon cutting router bits - product picturezoomTenon cutting router bits - technical drawingzoom
I D H L S Order No. Buy now Availability
1-3/8" 3" 1-1/16" 3-5/16" 1/2" 800.627.11 Buy now Available
If you've struggled cutting fitting tenons, here's the perfect solution for you. CMT's tenon cutting router bit will produce perfectly fitting tenons in every board you cut, even if the boards vary slightly in thickness. Simply set the distance between the cutters using the included spacers, and you can easily cut tenons from 4,76mm (3/16”) to 9,5mm (3/8”) thick, up to 27mm (1-1/16”) long. This simple-to-use router bit takes the mystery out of achieving the excellent tenon-to-mortise fit required for high quality joinery.

Safety precautions: maximum speed 12,000 RPM.
 Item  Shield for assembly  Slot cutter - 3 cutting edges  Arbor  Nut
800.627.11   541.513.00
  541.520.00
  541.521.00
  541.522.00
  541.523.00
   822.020.11
   824.134.00
   990.022.00
File
File description
Watch video
Watch the product in action!
Download file
How to create perfect tenons
Download file
Tenon cutting router bit set instructions

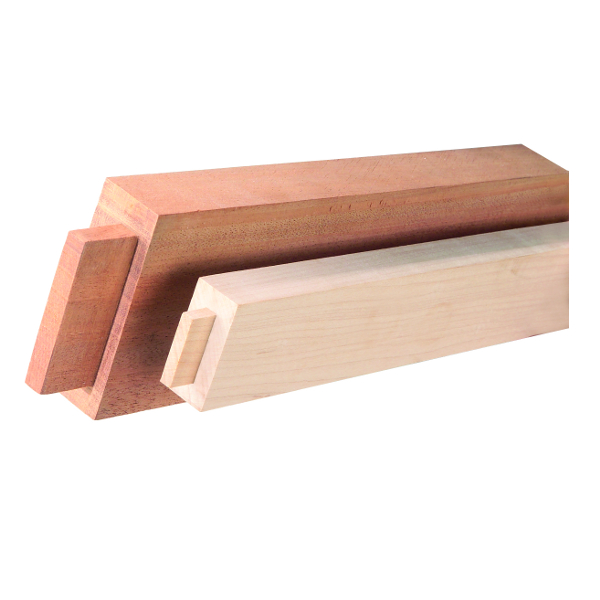

For tenons from 4,76mm (3/16zoom For tenons from 4,76mm (3/16") to 9,5mm (3/8") thick, up to 27mm (1-1/16") long.

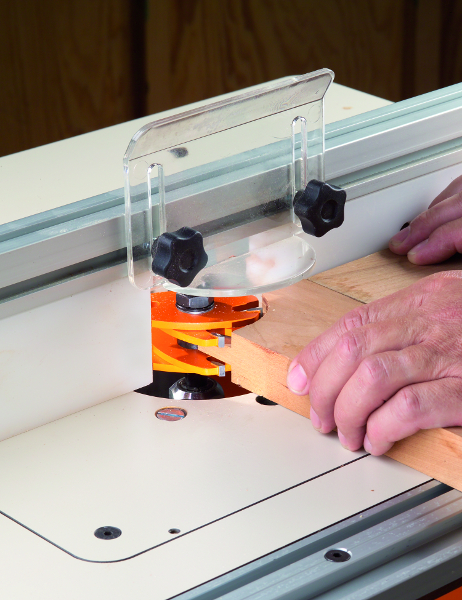

Make perfect tenons in one pass.- product picturezoom Make perfect tenons in one pass.

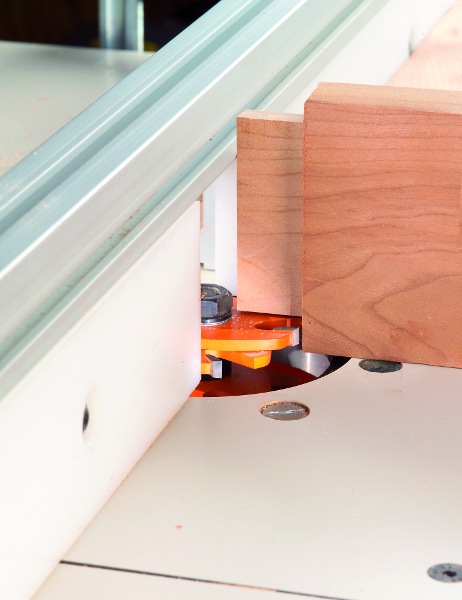

Mill both tenon sizes.- product picturezoom Mill both tenon sizes.

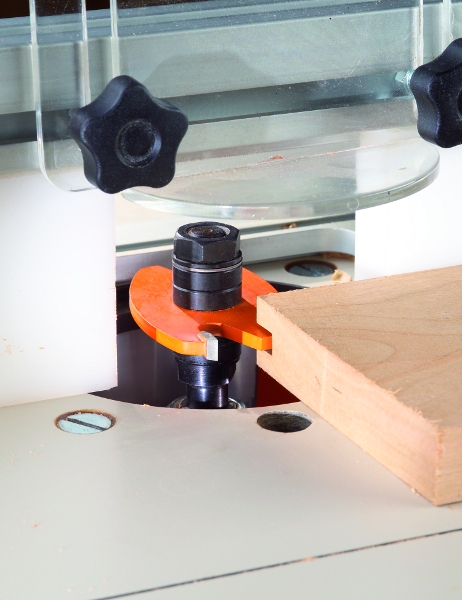

Use it for making grooves on the sides of your woodpiece.- product picturezoom Use it for making grooves on the sides of your woodpiece.

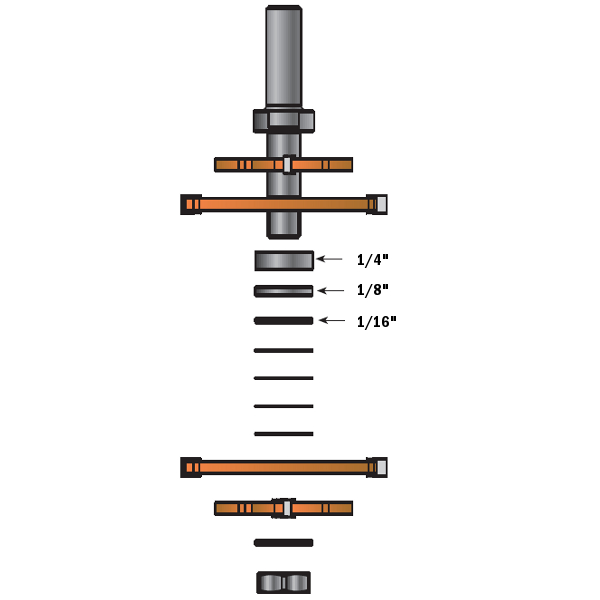

Assembly illustration.- product picturezoom Assembly illustration.
