3D Router Carver™ system

SERIES:  RCS

3D Router Carver™ system - product picturezoom
Description S Order No. Buy now Availability
3D Router Carver™ bit & sleeve 1/2 RCS-BIT Buy now Available
3D Router Carver™ DVD   RCS-DVD Buy now Available
3D Router Carver™ spare bit 1/2 RCS-CUT Buy now Available
3D Router Carver™ starter set   RCS-STS Buy now Available
3D Router Carver™ video   RCS-VID Buy now Available
Exclusively from your CMT distributor

Turn your router into a remarkable carving tool. It’s fast, easy, and a whole lot of fun!
Who says that intricate woodcarving requires an artist’s touch? Thanks to the patented 3D router carver system, anyone with a 12,7mm (1/2") collet plunge router can create any of the beautiful designs shown on these pages in just minutes. Decorate doors, drawers, cabinets, furniture or just about any flat wooden surface with one or more of these designs. How does it work? The secret is in the 3D router carver bit and the way that bit interacts with the carving templates. The V-Groove router bit is enclosed in a 45º cone-shaped guide. You rout with the plunge mechanism of your router unlocked, allowing the bit to move up or down as the router moves forward. As the slot in the template get wider, the bit moves down, producing a wider, deeper V-groove. As the slot gets narrower, the bit moves up, and the groove gets narrower and shallower. It sounds simple, and it is! (that’s why the system is patented in the USA and around the world). Please see the illustrations below for more details on the carving technique. You’ll receive complete instructions with your 3D carver templates. For an informative visual demonstration, check out the 3D router carver video.

What do you need to get started?
-The 3D router carver bit.
-The Carver template of your choice.
-The holding frame to match your template (these are listed in the charts with the templates).
-Your 12,7mm (1/2") collet plunge router.

Notice: be sure the opening in the base of your router is at least 47,6mm (1-7/8”) in diameter. If it isn’t, you’ll need to make a sub-base to accept the large diameter of the 3D carver bit.)

Complete classical starter set (for the North American Market)
The ideal introduction to the world of router carving. You’ll get everything you need to make two of the most popular designs: the Classical cabinet door and classical drawer, plus two holding frames, a 3D carver router vit and a video, all at a special price! Best of all, the holding frames will work with any of our cabinet door or drawer templates, so you’ll be able to add new designs at a minimal cost!

File
File description
Watch video
Watch the product video!
1) Clamp or tack the holding frame to your workpiece.- product picturezoom 1) Clamp or tack the holding frame to your workpiece.
2) Drop the template into the holding frame.- product picturezoom 2) Drop the template into the holding frame.
3) Allow the plunge mechanism to move up and down as you advance. Wider template slots allow wider, deeper grooves. Narrower slots produce shallower grooves. A)Template B)Workpiece C)Wide slot D)Narrow slot.- product picturezoom 3) Allow the plunge mechanism to move up and down as you advance. Wider template slots allow wider, deeper grooves. Narrower slots produce shallower grooves. A)Template B)Workpiece C)Wide slot D)Narrow slot.

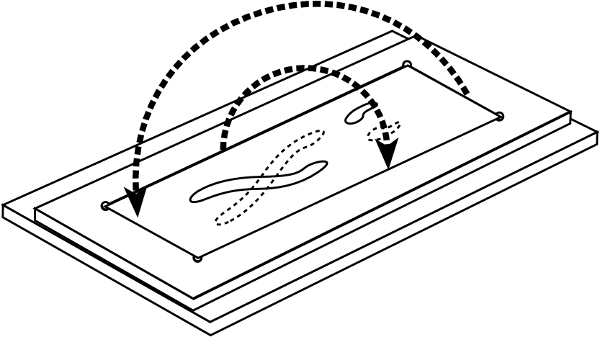

4) With the frame still in place, flip the template & rout again. Some templates will be routed 2 to 4 times, depending on the complexity of the design.- product picturezoom 4) With the frame still in place, flip the template & rout again. Some templates will be routed 2 to 4 times, depending on the complexity of the design.
5) Remove the frame and you’re finished!- product picturezoom 5) Remove the frame and you’re finished!
Classical door.- product picturezoom Classical door.
Door with dolphin.- product picturezoom Door with dolphin.
Door with eagle.- product picturezoom Door with eagle.
Door with Fleur De Lys.- product picturezoom Door with Fleur De Lys.
Door with Spanish fan.- product picturezoom Door with Spanish fan.
