CMT-Enlock joining system

SERIES:  CMT-Enlock1

CMT-Enlock joining system - product picturezoomCMT-Enlock joining system - technical drawingzoom
Description D Order No. Buy now Availability
50 key masterpack 1/2 CMT-ENLOCK15 Buy now Available
50 key masterpack 3/8 CMT-ENLOCK10 Buy now Available
CMT Enlock joining system   CMT-ENLOCK1 Buy now Available
HWM dovetail bit 1/2 818.128.11B Buy now Available
HWM dovetail bit 3/8 818.098.11B Buy now Available
The innovative CMT-Enlock joining system is designed to build the strongest “T”, “nitre” joints and “edge-to-edge” assemblies using the patented E15 and E10 dovetail keys. The dovetail slots in each part to be joined are machined quickly and accurately using the CMT Enlock jig. Simply clamp your workpiece in the jig, set the bit depth and you are ready to rout. The jig features strong cast aluminum construction throughout the body, top plate, stops and clamping bar to produce perfect strong joints for life!

Patent No. AU2005/903586
PCT/AU2006/000957
30~75mm (1-3/16" ~ 2-61/64") width range;
19~35mm (3/4" ~ 1-3/8") thickness range.

STANDARD EQUIPMENT:
-joining system CMT-Enlock1;
-50 key masterpack (CMT-Enlock10);
-instruction manual in five languages;
-video available;

HW dovetail bit is included for the North American Market.

PATENTED SYSTEM:
the CMT Enlock dovetail key expands when the cap is forced in. This widers the dovetail producing a strong clamping force across the joint. No other dovetail system on the market produces this camping force.
 Item  Stop collar for top bearing bitStop collar for bearing  KeyKey  BearingBearing  ScrewScrew
818.128.11B   541.001.00
   991.056.00
   791.010.00
   990.005.00
818.098.11B   541.001.00
   991.056.00
   791.010.00
   990.005.00
File
File description
Watch video
Watch the product in action!
Download file
Instruction manual
Download file
CMT Enlock jig owner’s manual
Supplied in a solid plastic box.- product picturezoom Supplied in a solid plastic box.

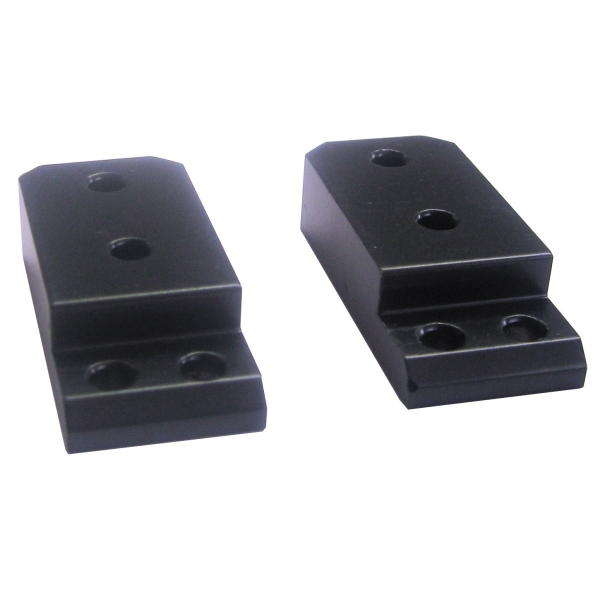

Support feet to attach and fix the jig to the table- product picturezoom Support feet to attach and fix the jig to the table

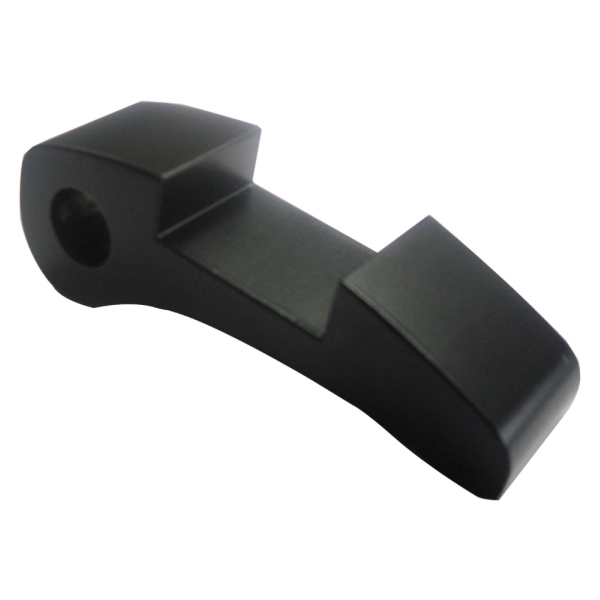

Clamp extension arm to make widening joints.- product picturezoom Clamp extension arm to make widening joints.

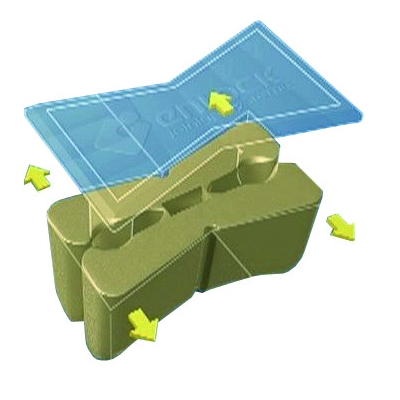

Patented system.- product picturezoom Patented system.
Overall view of the product.- product picturezoom Overall view of the product.

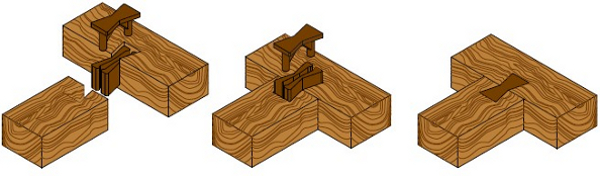

A few seconds and your joints are ready!- product picturezoom A few seconds and your joints are ready!
CMT-Enlock joining system router bits.- product picturezoom CMT-Enlock joining system router bits.
